MAIN GIGABYTE Z790 UD AX DDR5 (WIFI+BLUETOOTH) – BH HLC 36TH

0 (0 lượt đánh giá) | Lượt xem: 27 | Mã SP: --- | Tình trạng:Còn hàng

Bảo hành: 36 Tháng

Hãng: GIGABYTE

VRM: 60A DrMOS 16+1+1

WIFI 6E +BLUETOOTH

Chipset: Z790

Socket: FCLGA1700

Form: ATX

RAM: 4xDDR5

5.590.000 ₫

Mô tả

Đánh giá MAIN GIGABYTE Z790 UD AX DDR5 (WIFI+BLUETOOTH) – BH HLC 36TH

5 0% | 0 đánh giá

4 0% | 0 đánh giá

3 0% | 0 đánh giá

2 0% | 0 đánh giá

1 0% | 0 đánh giá

Đánh giá ngay

Đánh giá MAIN GIGABYTE Z790 UD AX DDR5 (WIFI+BLUETOOTH) – BH HLC 36TH

Chưa có đánh giá nào.

Chưa có bình luận nào

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Tên Hãng	Gigabyte
Model	Z790 UD AX
CPU hỗ trợ	Intel
Chipset	Z790
RAM hỗ trợ	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)
Khe cắm mở rộng	CPU:
	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	Chipset:
	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Ổ cứng hỗ trợ	CPU:
	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	Chipset:
	2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
	6 x SATA 6Gb/s connectors
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector
	2 x 8-pin ATX 12V power connectors
	1 x CPU fan header
	1 x water cooling CPU fan header
	3 x system fan headers
	1 x system fan/water cooling pump header
	2 x addressable LED strip headers
	2 x RGB LED strip headers
	3 x M.2 Socket 3 connectors
	6 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x S/PDIF Out header
	1 x USB Type-C® header, with USB 3.2 Gen 1 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x serial port header
	2 x Thunderbolt™ add-in card connectors
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x reset button
	1 x Q-Flash Plus button
	1 x reset jumper
	1 x Clear CMOS jumper

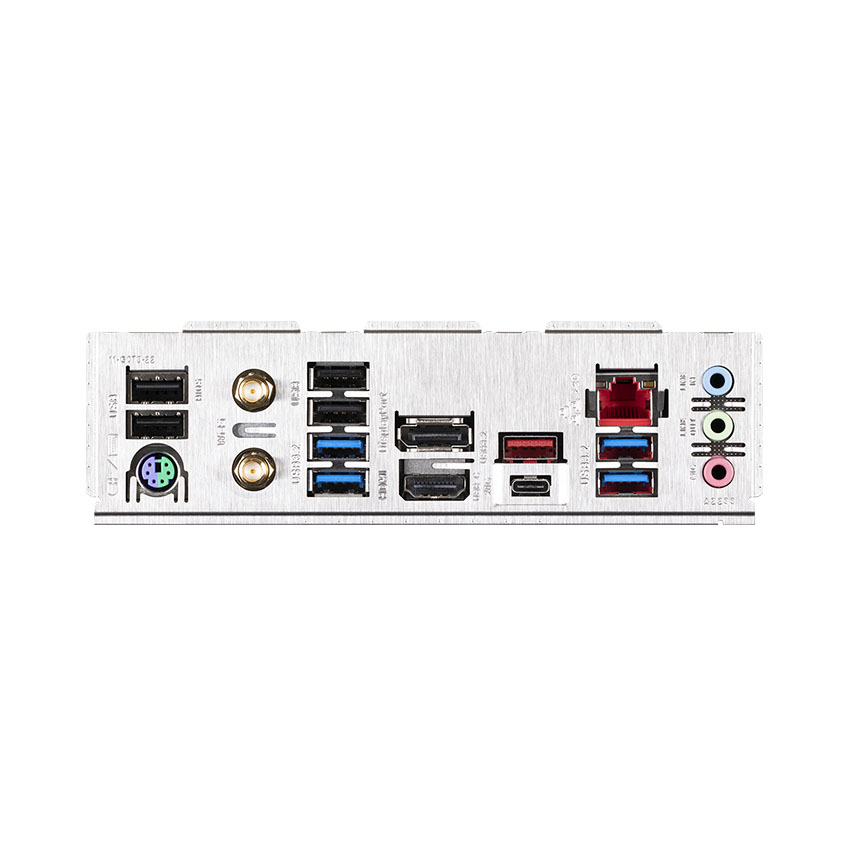

Cổng kết nối (Back Panel)	1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
	1 x USB 3.2 Gen 2 Type-A port (red)
	4 x USB 3.2 Gen 1 ports
	4 x USB 2.0/1.1 ports
	2 x SMA antenna connectors (2T2R)
	1 x HDMI 2.0 port
	1 x DisplayPort
	1 x RJ-45 port
	3 x audio jacks
LAN / Wireless	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
	AMD Wi-Fi 6E RZ616 (MT7922A22M)
	WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	BLUETOOTH 5.2
	Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

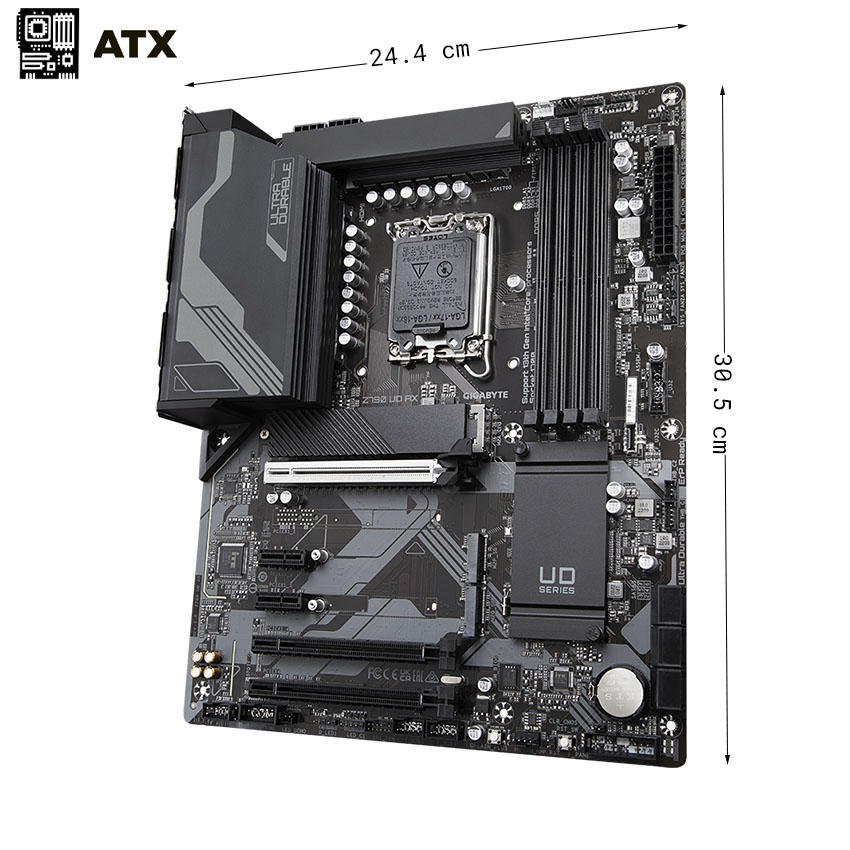

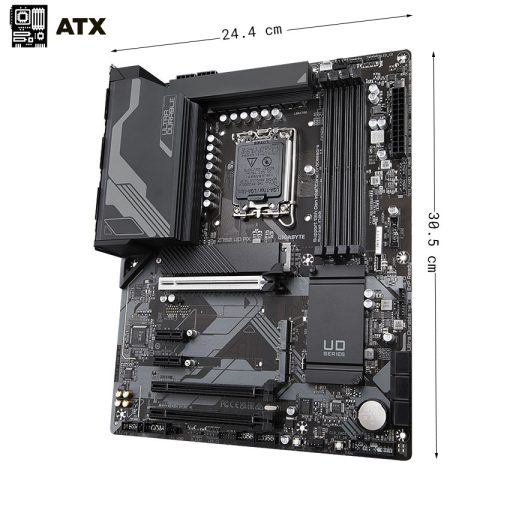

Kích cỡ	ATX Form Factor; 30.5cm x 24.4cm
